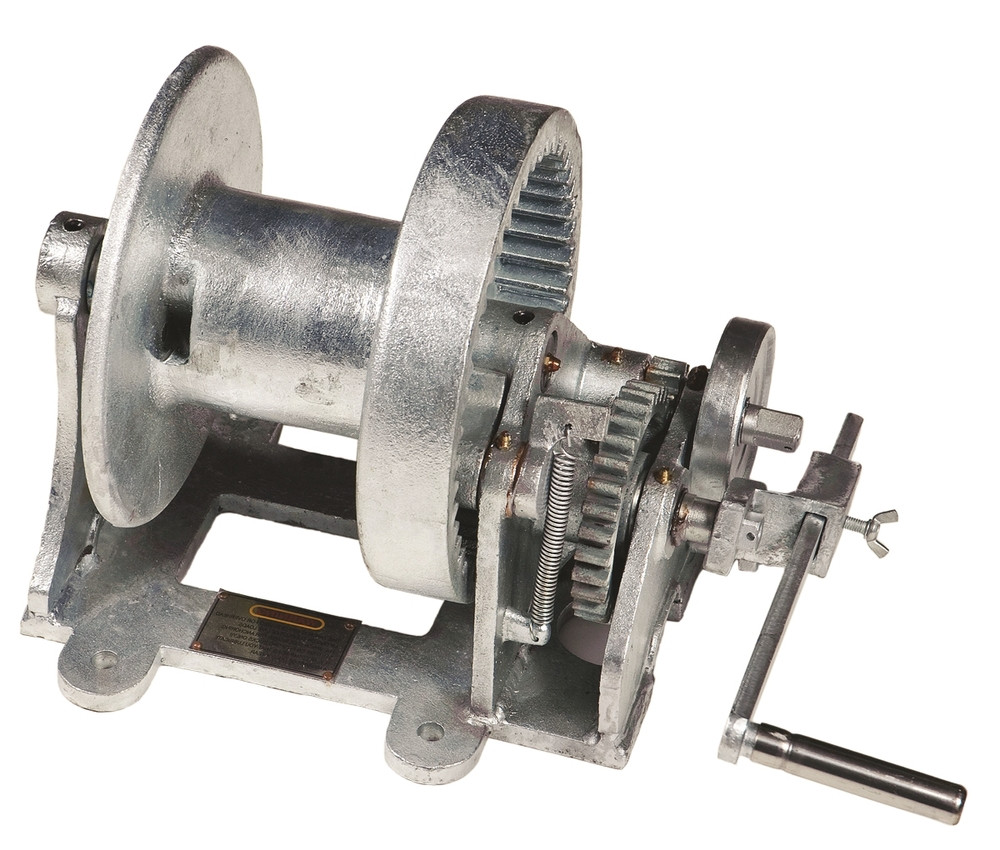

#10 Galvanized Marine Hand Winch
$1,000.00
Description
Dimensions
- Inside drum width: 5”
- Mounting holes: 7” x 8 1/2” to center of holes
- Bolt Diameter: 1/2”
Cable Capacity
- 3/8” 130 feet
- 1/2” 92 feet
- 5/8” 60 feet
- 3/4” 37 feet
Weight: 85 lbs.
Holding capacity: 10,000 lbs
Lifting capacity: 3,000 lbs
Gear ratio
- Large gear- 4 to 1
- Small gear- 11 to 1
Hand brake available: Yes
- Hot-dipped and galvanized for superior corrosion protection
- Extra heavy-duty construction in winch frame and spool brackets
- Grease fittings at all wear and stress points to insure smooth operation
- Spring loaded holding dog for a secure lock
- Adjustable handle for easy operation
- Positive retention cable holding mechanism
- Two speed operation
- To be used as anchoring devices—not designed for live loads
Additional information
| Weight | 85 lbs |
|---|---|
| Dimensions | 24 × 24 × 24 in |
