12’x12′ Floating Dock Platform w/walkway

Description

12’x12′ Floating Dock Platform w/4′ walkway

– 12’x12′ Wood Dock Materials

• (5) Eagle Floats, 48″x48″x12″ Encapsulated HD Polyethylene shell with Expanded Polystyrene foam-filled floats
• (4) Outside Corner Ends
• (4) Inside Corners
• (10) Angles
• (20) Washer plates
• (72) 1/2″x3″ Carriage bolt sets
• (20) 3/8″x4″ Lag bolts w/washer (4 per float)

– 4’x10′ (up to 12′) Wood Dock Walkway

• (1) Eagle Floats, 36″x48″x12″ Encapsulated HD Polyethylene shell with Expanded Polystyrene foam-filled floats
• (4) Inside Corners
• (4) Outside Corner Female (2 steel tabs)
• (4) Male T Connector (1 steel tab)
• (4) Connector Pin
• (5) Angles
• (10) Washer plates
• (8) Backing plates
• (84) 1/2″x3″ Carriage bolt sets
• (4) 3/8″x4″ Lag bolts w/washer
• (4) 3″ Pipe Holder for 1.5″-2″ pipe (pipe not included)

Call 931-261-0197 if you need additional hardware or require assistance.

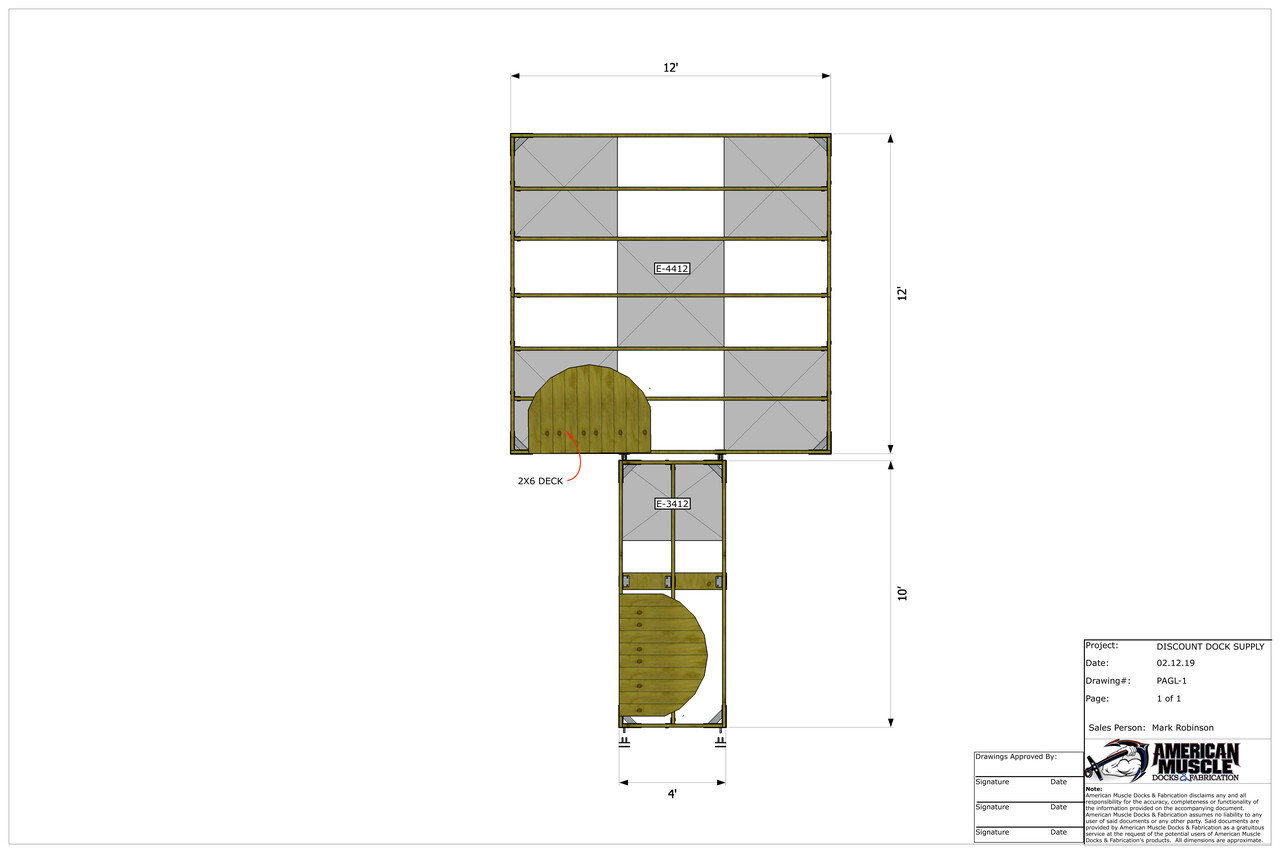

This is NOT shipped assembled.  You build it.  No other plans or instructions will be provided.  Lumber is not included.  Illustration shows 2×8 framing with 2×6 decking with 24″ on centers.
