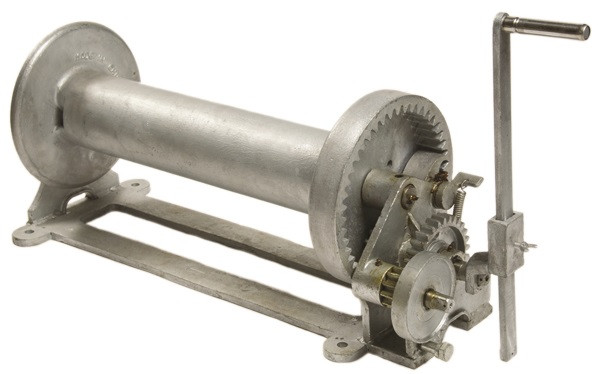

#23 Galvanized Marine Hand Winch
$1,325.00
Description
Dimensions
- Inside drum width: 21”
- Mounting holes: 23 3/4” x 8 1/2” to center of holes
- Bolt Diameter: 1/2”
Cable Capacity
- 3/8” 560 feet
- 1/2” 320 feet
- 5/8” 280 feet
- 3/4” (max size) 345 feet
Weight: 115 lbs.
Holding capacity: 10,000 lbs
Lifting capacity: 3,000 lbs
Gear ratio
- Large gear- 4 to 1
- Small gear- 11 to 1
Hand brake available: Yes
- Hot-dipped and galvanized for superior corrosion protection
- Extra heavy-duty construction in winch frame and spool brackets
- Grease fittings at all wear and stress points to insure smooth operation
- Spring loaded holding dog for a secure lock
- Adjustable handle for easy operation
- Positive retention cable holding mechanism
- Two speed operation
- To be used as anchoring devices—not designed for live loads
Additional information
| Weight | 115 lbs |
|---|---|
| Dimensions | 24 × 24 × 24 in |
